31.5KW Auto Edge Banding Machine Narrow End Edge Bander HD853J

Narrow End Edge Bander: HD853J

• Special pre-milling device for narrow end ≥40mm.
• Auxiliary feeding and side pressing unit: It is specially equipped for narrow panel edge banding. The feeding will be convenient, safe and efficient.
• NC controlled lifting press beam, reduce labor intensity, improve efficiency and accuracy.
• With panel edge pre-heating unit.
• Gluing system 1:EVA glue fast melting + upper glue pot gluing system, reserved PUR glue port.
• Gluing system 2: down EVA gluing system.
• l Two sets of servo controlled tape feeding system. It reduces time of changing tape to improve efficiency. The feeding is precise. Every cutting can save around 15mm tape.
• Five wheel pressing. 5 iron wheels+ glue scraper device for wheel. It can improve the adhesion and remove glue on wheels.
• l Harden gear conveyor reducer is strong and powerful.
• Two sets of pneumatic avoidance scraping.
• l Two-rail three motors end cutting can keep a small plate distance, and reduce the end size range.
• Standard with flexible flat scraping, separation and cleanser spray unit

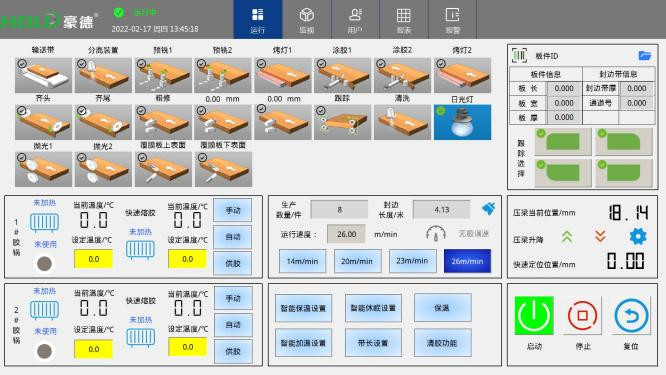

All intelligent control system:

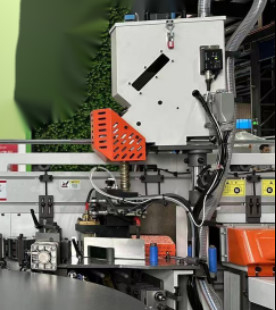

Auxiliary feeding of narrow side end:

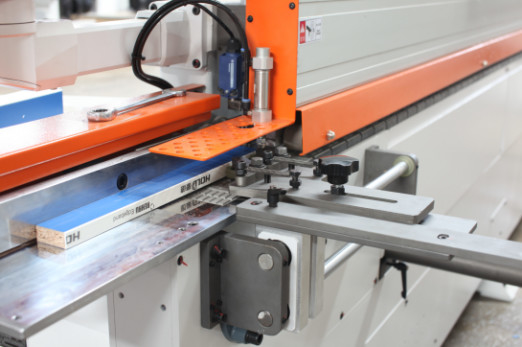

Narrow side automatic side pressing device:

Gluing one: EVA glue fast melting + upper glue pot gluing system + servo tape feeding:

About our company

One-stop solution for
interior furniture equipment and wooden door equipment
HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
