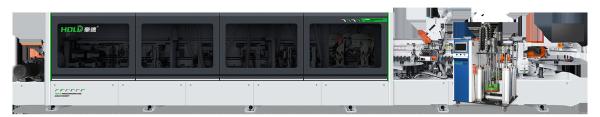

Automatic High-Speed Narrow Edge Banding Machine HD855J

Name: Automatic HighSpeed Narrow Edge Banding Machine HD855J
Brand: HOLD
Price: 1 USD

Quality Automatic High-Speed Narrow Edge Banding Machine HD855J wholesale

Brand Name : HOLD

Model Number : HD855J

MOQ : 1

Payment Terms : L/C, T/T

Delivery Time : 15-30 Work days

Contact Now

Minimum board size: 150×40mm (four-side edge banding with tracking), 120×40mm (long-side edge banding).

Specially designed pre-milling mechanism for narrow end heads of workpieces, capable of milling narrow board end heads of ≥40mm.

The frame adopts a heavy-duty structure, processed by CNC to ensure the flatness of the table.

The distance between two sets of guide rail columns is densified, ensuring smoother board transportation and better edge scraping effect.

Independent motor control for glue application and edge pressing to avoid the phenomenon of "less glue at the beginning and more glue at the end" of boards.

Gluing system 1: upper PUR gluing system;

Gluing system 2: EVA gluing system

Item	HD855J	Item	HD855J
Electrical lifting	√	Thickness of panel	10-60mm
Total power	33kw	Length of panel	≥120mm (with corner rounding ≥150mm)
Dimension	10450x1000x1800mm	Width of panel	≥40mm
Feeding speed	16m-20m-23m/min	Working pressure	0.6Mpa
Thickness of tape	0.4-3mm	Min. Size of panel	150×40mm (four-sided edge banding, with tracking capability) 120×40mm (edge banding on the long side)

Fully intelligent control system
